1. widely used in oil extraction, oil refining, chemical industry, military and other dangerous environment and offshore oil platforms, oil tankers and other places for common lighting and working lighting.
2. Suitable for explosive gas environment zone 1, zone 2;
3. Explosive atmosphere: class ⅡA,ⅡB, ⅡC
4. Suitable for combustible dust environment in the area 22, 21;
5. Suitable for high protection requirements, damp places;
1. The enclosure is moulded by the high strength aluminum alloy for one time, which has high strength, fine explosion-proof functions. Its exterior has sprayed with plastic by high pressure static after shot blasting at high speed. It has strong adhesion of plastic powder and great anti-corrosive performance. Outer fasteners are made of stainless steel.
2. Lamp housing is made of high borosilicate glass with great transmittance and high energy shock resistance.It's the antiglare design.After designed by special software design of distribution for two times, it can get the confirmation.
3. It is holistic structure, however, the light cavity,electrical apparatus box and connecting line cavity are independent.That's convenient to install and maintain, and it has reliable electrical properties.
4. Reflector is made of high-quality aluminium plate.After it has been designed by special software design of distribution for two times, and passed the actual test, the availability factor of lamps can be raised.
5. Assembling the hole and pothook to open conveniently.It can raise the safety of maintenance.
6. The wiring terminals are adopted the pressing line type. It is not necessary to add any accessories, so that the wires and terminals can be connected reliably.
7. When the holistic structure, it can use electronic induction compensation capacitor .Power factor is more than 0.8.
8. Wiring with steel tube.

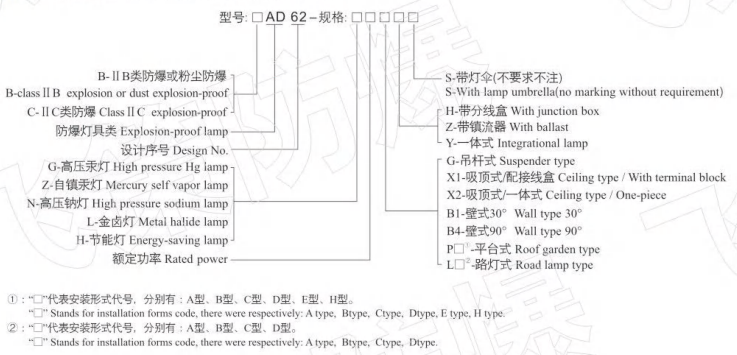

1. In accordance with the specifications of the meaning of the rules and regulations to choose one by one, and in the model specifications after the increase of explosion-proof mark. Concrete expression is: "product model - specification code + explosion-proof mark + order quantity". Such as the need for dust explosion HPS 400W, ceiling-mounted luminaires, order quantity 20 sets, the product model: "Model: BAD62- Specifications: N400X + Ex tD A21 IP66 T195 ℃";
2. Refer to pages P431~P440 for the selected mounting styles and accessories.
3. If there are some special requirements, it should be pointed as ordering.
4. If need the lamp cover, it should be pointed as ordering.
