1. The outer shell of the product is cast aluminum alloy ZL102. It adopts one-time die-casting process, with smooth surface, beautiful appearance, high density of internal structure, strong impact resistance, good explosion-proof performance of the shell, and permanent permanent “Ex” explosion-proof mark on the product. .
2. After the surface of the outer casing is removed by industrial robots and high-speed shot blasting, the advanced automatic high-pressure electrostatic spray and heat-curing line technology is adopted, and the plastic layer formed on the surface of the shell has strong adhesion and good anti-corrosion ability.

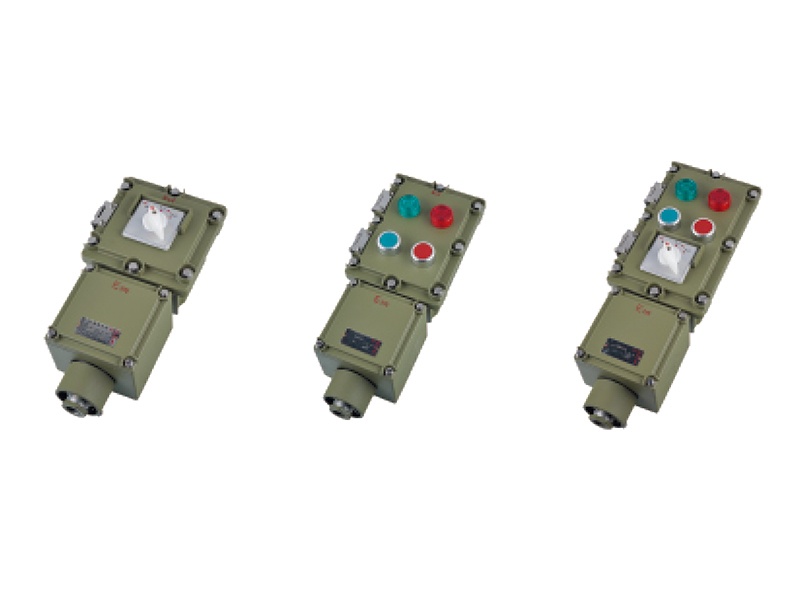

3. The main chamber is an explosion-proof enclosure with various electrical components such as indicator lights, buttons, voltage, ammeter and transfer switch.
4. There are more than 30 transfer switch functions, which can be selected according to user requirements and reliable performance.
5. The sealing strip adopts two-component polyurethane primary casting foaming process with high protection performance.
6. Outdoor products can be equipped with rain cover according to user requirements.
7. The installation method is generally column type, and can also be made into hanging type or bridge type, or can be specially made according to user requirements. Hanging and bridge mounting can be made into the upper or lower line.
8. All exposed fasteners are made of stainless steel.
9. Steel pipes and cable wiring are available.
